Touch Screen USB / RS232 Controllers



TVI Electronics provides a variety of Touch Screen controllers in RS232 and USB communication interfaces supporting 4 & 5 wires Analog Resistive touch screens as well as Surface Acoustic Wave (SAW) touch panels.



TVI Electronics family of touch screen controller boards are designed for easy configuration and provide an optimistic performance of the variety of touch screen panels. Their compact design makes easy integration into flat panel displays and mobile devices, using USB or RS232 serial data communication. The TouchScreen Controllers combine high performance with the special features needed for embedded touch screen applications. These controllers offer a fast touch response, while also providing excellent reliability and proven performance. These Touch Screen controllers can be used in applications such as smart phones, personal digital assistants (PDAs), point of sales terminals and other hand-held products requiring touch screen input. The touch panel driver emulates mouse left and right button function, supports handwriting-recognition technology and supports operation systems including Windows 95 / 98 / ME / NT4 / 2000 / XP / XP Tablet PC Edition / Vista / 7 / 8, Windows CE2.12 / 3.0 / .NET (4.0, 5.0, 6.0), DOS, Linux and iMac.





4-Wire Resistive TouchScreen Controllers



4-Wire Resistive TouchScreen USB Controller (SLT-TP05-USB)



SLT-TP05-USB 4-Wire Analog Resistive TouchScreen USB Controller

SLT-TP05-USB 4-Wire TouchScreen USB ControllerClick picture to enlarge



Features for TouchKit Software

Specifications for TouchScreen Controller

Details...

  • Calibration: Fast full oriental 4 points position

  • Compensation: Accuracy 25 points linearity compensation

  • Mouse Emulator:

    • Right / Left button emulation

    • Normal / Click on touch / Click on release mode

    • Auto right button

  • Extend Feature:

    • Support monitor / display rotation

    • Support multiple monitor / display

    • Support QVGA and Half-VGA function

    • Support edge compensation

    • Support handwriting-recognition technology

Details...

  • Power requirements: +5VDC, typical 70mA

  • Operating temperature: -20C to 70C

  • Storage temperature: -30C to
    85C

  • Protocol: USB 1.1 Low speed

  • Resolution: 2048 X 2048

  • Report rate: Max. 160 points/sec

  • Response time: Max. 24 ms

  • Panel resistance: 50 ~ 900 ohm ( pin to pin on the same layer )

  • Regulatory Approvals: FCC-B, CE

  • Dimensions (L x W): 68 mm (2.7 in) x 20 mm (0.79 in)

  • Warranty: 2 years


shop-on-line Buy Online



4-Wire Resistive TouchScreen HID USB Controller (SLT-4W-HID)



SLT-4W-HID 4-Wire Analog Resistive Touch Screen HID USB Controller

SLT-4W-HID 4-Wire Touch Screen HID USB ControllerClick picture to enlarge



Specifications for TouchScreen HID USB Controller

Details...

  • Power requirements: +5VDC, typical 70mA

  • Operating temperature: -20C to 70C

  • Storage temperature: -30C to
    85C

  • Protocol: USB 1.1 Low speed

  • Data Output: HID Compliant

  • Resolution: 2048 X 2048

  • Report rate: Max. 160 points/sec

  • Response time: Max. 24 ms

  • Panel resistance: 50 ~ 900 ohm ( pin to pin on the same layer )

  • Regulatory Approvals: FCC-B, CE

  • Dimensions (L x W): 68 mm (2.7 in) x 20 mm (0.79 in)

  • Warranty: 2 years


shop-on-line Buy Online



4-Wire Resistive TouchScreen USB Controller (SLT-TP05-USBB)



SLT-TP05-USBB 4-Wire Analog Resistive Touch Screen USB Controller

SLT-TP05-USBB 4-Wire Touch Screen USB-B ControllerClick picture to enlarge



Features for TouchKit Software

Specifications for TouchScreen Controller

Details...

  • Calibration: Fast full oriental 4 points position

  • Compensation: Accuracy 25 points linearity compensation

  • Mouse Emulator:

    • Right / Left button emulation

    • Normal / Click on touch / Click on release mode

    • Auto right button

  • Extend Feature:

    • Support monitor / display rotation

    • Support multiple monitor / display

    • Support QVGA and Half-VGA function

    • Support edge compensation

    • Support handwriting-recognition technology

Details...

  • Power requirements: +5VDC, typical 70mA

  • Operating temperature: -20C to 70C

  • Storage temperature: -30C to
    85C

  • Protocol: USB 1.1 Low speed

  • Resolution: 2048 X 2048

  • Report rate: Max. 160 points/sec

  • Response time: Max. 24 ms

  • Panel resistance: 50 ~ 900 ohm ( pin to pin on the same layer )

  • Regulatory Approvals: FCC-B, CE

  • Dimensions (L x W): 76 mm (3.0 in) x 20 mm (0.79 in)

  • Warranty: 2 years


shop-on-line Buy Online



4-Wire Resistive TouchScreen RS232 Controller (SLT-TP05-RS232, SLT-TP05-RS232N)



SLT-TP05-RS232 4-Wire Analog Resistive Touch Screen RS232 Controller

SLT-TP05-RS232 4-Wire Touch Screen RS232 ControllerClick picture to enlarge



Features for TouchKit Software

Specifications for TouchScreen Controller

Details...

  • Calibration: Fast full oriental 4 points position

  • Compensation: Accuracy 25 points linearity compensation

  • Mouse Emulator:

    • Right / Left button emulation

    • Normal / Click on touch / Click on release mode

    • Auto right button

  • Extend Feature:

    • Support monitor / display rotation

    • Support multiple monitor / display

    • Support QVGA and Half-VGA function

    • Support edge compensation

    • Support handwriting-recognition technology

Details...

  • Power requirements: +5VDC, typical 70mA

  • Operating temperature: -20C to 70C

  • Storage temperature: -30C to
    85C

  • Protocol: RS232 Model: 9600 bauds, None parity, 8 bits data, 1 stop bit

  • Resolution: 2048 X 2048

  • Report rate: Max. 160 points/sec

  • Response time: Max. 24 ms

  • Panel resistance: 50 ~ 900 ohm ( pin to pin on the same layer )

  • Regulatory Approvals: FCC-B, CE

  • Dimensions (L x W): 74 mm (2.9 in) x 20 mm (0.78 in)

  • Warranty: 2 years


shop-on-line Buy Online

5-Wire Resistive TouchScreen Controllers



5-Wire Resistive TouchScreen USB Controller (TP05-5W-USB)



TP05-5W-USB 5-Wire Analog Resistive TouchScreen USB Controller

TP05-5W-USB 5-Wire TouchScreen USB ControllerClick picture to enlarge



Features for TouchKit Software

Specifications for TouchScreen Controller

Details...

  • Calibration: Fast full oriental 4 points position

  • Compensation: Accuracy 25 points linearity compensation

  • Mouse Emulator:

    • Right / Left button emulation

    • Normal / Click on touch / Click on release mode

    • Auto right button

  • Extend Feature:

    • Support monitor / display rotation

    • Support multiple monitor / display

    • Support QVGA and Half-VGA function

    • Support edge compensation

    • Support handwriting-recognition technology

Details...

  • Power requirements: +5VDC ( Maximum 100mA, typical 70mA, 50mV peak to peak maximum ripple)

  • Operating temperature: -20C to 70C

  • Storage temperature: -30C to
    85C

  • Protocol: USB 1.1 Low speed

  • Resolution: 2048 X 2048

  • Report rate: Max. 160 points/sec

  • Response time: Max. 24 ms

  • Panel resistance: 50 ~ 200 ohm ( pin to pin on the same layer, touch resistance under 1.2k ohm )

  • Regulatory Approvals: FCC-B, CE

  • Dimensions (L x W): 68 mm (2.7 in) x 20 mm (0.79 in)

  • Warranty: 2 years


shop-on-line Buy Online



5-Wire Resistive TouchScreen RS232 Controller (SLT-TP05-RS232C-5W)



SLT-TP05-RS232C-5W 5-Wire Analog Resistive TouchScreen RS232 Controller

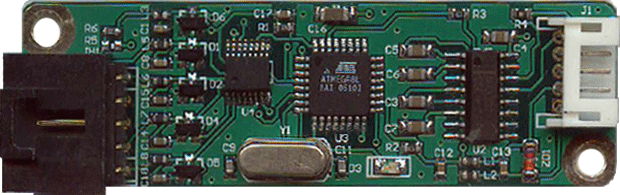

SLT-TP05-RS232C-5W 5-Wire TouchScreen RS232 ControllerClick picture to enlarge



Features for TouchKit Software

Specifications for TouchScreen Controller

Details...

  • Calibration: Fast full oriental 4 points position

  • Compensation: Accuracy 25 points linearity compensation

  • Mouse Emulator:

    • Right / Left button emulation

    • Normal / Click on touch / Click on release mode

    • Auto right button

  • Extend Feature:

    • Support monitor / display rotation

    • Support multiple monitor / display

    • Support QVGA and Half-VGA function

    • Support edge compensation

    • Support handwriting-recognition technology

Details...

  • Power requirements: +5VDC, typical 70mA

  • Operating temperature: -20C to 70C

  • Storage temperature: -30C to
    85C

  • Protocol: RS232 Model: 9600 bauds, None parity, 8 bits data, 1 stop bit

  • Resolution: 2048 X 2048

  • Report rate: Max. 160 points/sec

  • Response time: Max. 24 ms

  • Panel resistance: 50 ~ 900 ohm ( pin to pin on the same layer )

  • Regulatory Approvals: FCC-B, CE

  • Dimensions (L x W): 68 mm (2.7 in) x 20 mm (0.80 in)

  • Warranty: 2 years


shop-on-line Buy Online

TouchScreen Controllers Supporting Documentation


Click Here for TouchKit Software Drivers downloads
